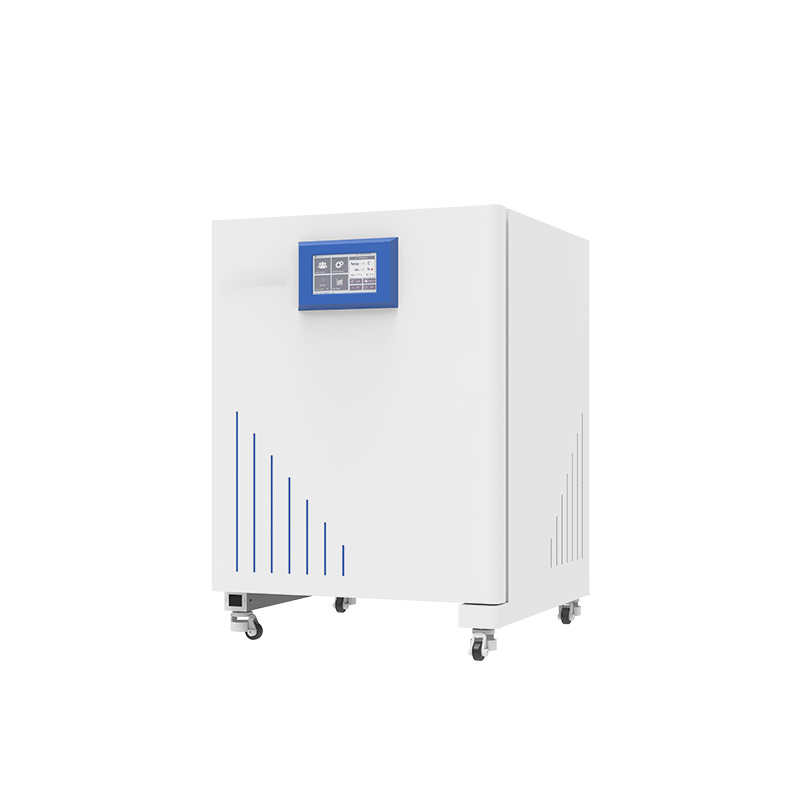

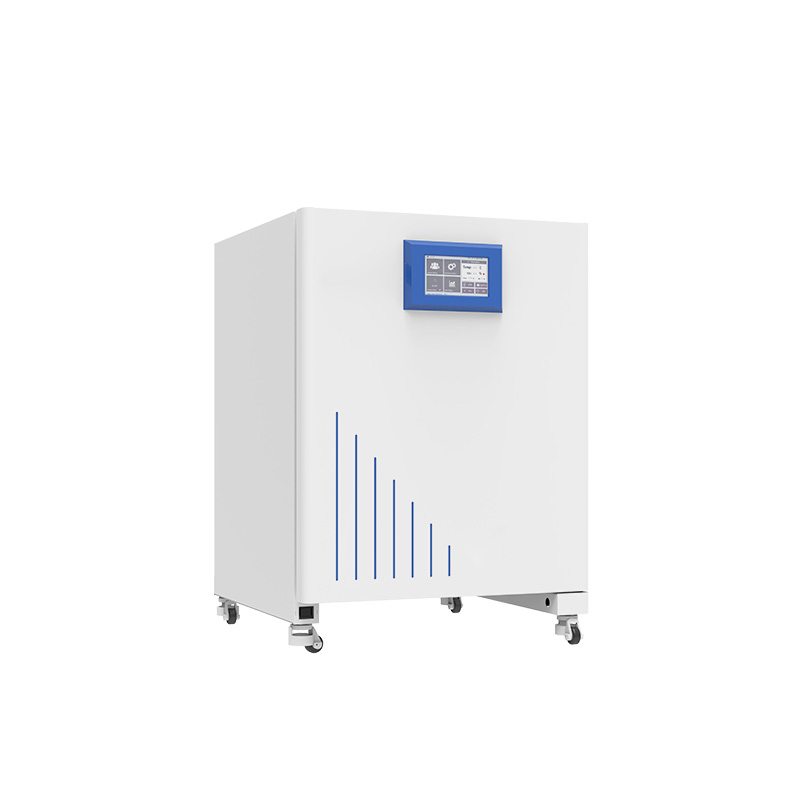

Product Overview
The BJPX-C II series CO2 incubators cover three mainstream capacity specifications of 50L, 80L and 160L, adopting advanced air jacket heating structure. Optimized for routine cell culture experiments, the equipment integrates constant temperature and constant CO2 concentration control, independent humidity display and intelligent water shortage reminder functions. The upgraded inner tank process and humanized water storage design effectively reduce daily maintenance frequency, while multiple temperature and concentration alarm protections ensure long-term stable and safe operation of cell culture, meeting standard experimental requirements of various biological and medical laboratories.
Product Features
Dual-channel Dual-filter IR Infrared SensorEquipped with high-precision dual-channel dual-filter infrared sensing technology, realizing stable and accurate real-time monitoring of internal CO2 concentration with strong anti-interference ability and reliable detection data.
Real-time Humidity Display FunctionBuilt-in humidity detection module, which can real-time display the internal humidity level of the incubator, allowing users to intuitively grasp the internal culture environment and adjust conditions as needed.

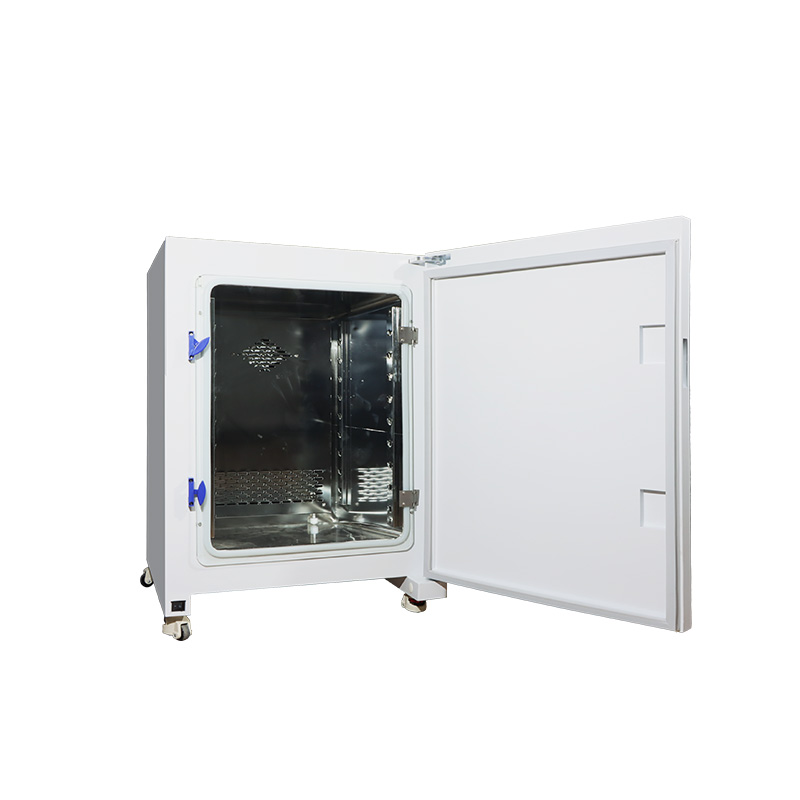

Upgraded 304 Stainless Steel Inner TankThe inner cavity is made of high-quality 304 stainless steel with electrochemical surface treatment. Adopting semicircular corner design without sanitary dead corners, it is easy to clean, corrosion-resistant and durable.
Independent Bottom Water Reservoir DesignConfigured with integrated bottom water reservoir, which effectively reduces the frequency of repeated water replenishment, simplifies daily maintenance work and saves experimental time cost.
Intelligent Water Level Alarm ProtectionWith sensitive water level induction and alarm function, it can timely remind operators to replenish water when the water volume is insufficient, avoiding experimental risks and providing comprehensive safety protection for cultured samples.
Multi-dimensional Safety Protection SystemBuilt-in leakage current and over-voltage protection devices. It supports automatic alarm and protection for abnormal conditions including over-temperature, under-temperature, CO2 over-concentration and under-concentration, ensuring safe and stable equipment operation.
Technical Parameters
Item | BJPX-C50II | BJPX-C80II | BJPX-C160II |
Type | Air jacket |
Sterilization Type | 90℃ moist heat sterilization |
Capacity | 50L | 80L | 160L |
Temperature Sensor | PT100 |
Temperature Range | RT+5~60℃ |
Temperature Fluctuation | ±0.3℃ (@37℃) |
Temperature Uniformity | ±0.5℃ (@37℃) |
Temperature Precision | 0.1℃ |
Timing Range | 0~999h or continuous |
Display | 7-inch touch screen |
CO2 Control Mode | IR infrared sensor with calibration certificate |
CO2 Concentration Range | 0~20vol% |
CO2 Uniformity | 0.2vol% |
CO2 Control Resolution | 0.1vol% |
Ambient Requirements | Ambient temperature: 5~30℃ (Recommended: 25±2℃); Ambient humidity: ≤80% |
Filter Configuration | CO2 gas filter |
Power Supply | Standard: AC220V, 50/60Hz; Optional: 110V, 50/60Hz (External transformer); Wiring method: plug |
Power Consumption | 300W | 650W | 700W |
Shelves | 2pcs, adjustable |
Standard Accessories | Shelves, USB interface, CO2 relief valve, CO2 gas filter |
Optional Accessories | Water pump, three-way connector |
Internal Dimension (W*D*H) | 308*392*442mm | 368*452*517mm | 468*552*648mm |
External Dimension (W*D*H) | 551*713*765mm | 611*773*841mm | 711*873*991mm |
Package Size (W*D*H) | 645*807*902mm | 725*887*985mm | 820*1010*1128mm |
Net Weight | 60kg | 72kg | 95kg |
Gross Weight | 85kg | 93kg | 120kg |
Supply Information
Product Origin: ChinaDelivery Time: Within 7 daysSupply Capacity: Factory Direct Supply
