Basic Information
Product Name: Anaerobic JarProduct Origin: CHINADelivery Time: Within 7 daysSupply Mode: Factory Direct SupplyAvailable Models: BK-AJH015, BK-AJH025, BK-AJH035, BK-AJH050, BK-AJG015, BK-AJG025, BK-AJG035, BK-AJG050, BK-AJG070, BK-AJG100
Introduction

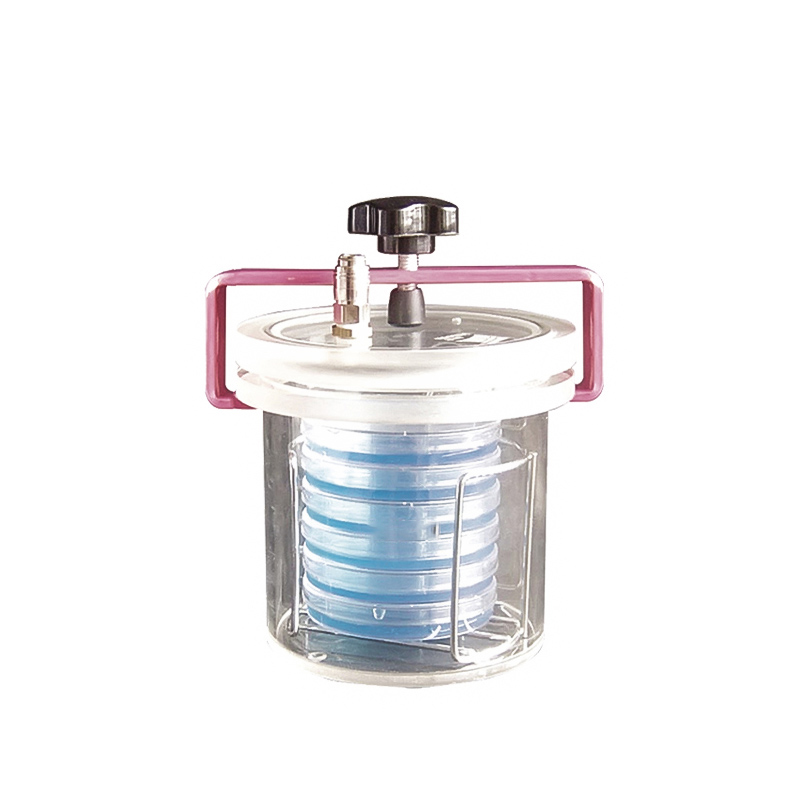

Anaerobic Jar is a dedicated lab vessel specially manufactured to build an oxygen-free environment for the incubation and cultivation of anaerobic microorganisms.
Product Features
- Superior airtight sealing performance to prevent unwanted air leakage.
- Constructed of PMMA material with smooth surface, anti-shock and anti-impact.
- Both tank body and lid are fully transparent; high-quality O-ring provides tight sealing between lid and jar.
- Reinforced clamp structure for jar and lid to ensure integral airtight effect.
- Color-coated stainless steel clamp with electrostatic spray finish, sturdy and easy for lab classification management.
- Quick snap-shut coupling design allows one-step fast connection to supporting systems.
- Standard Configuration
- BK-AJH Pumping Series: Anaerobic jar, 15R/25R petri dish rack, pressure gauge (oil type as standard, oil-free type optional)
- BK-AJG Hermetic Series: Anaerobic jar, 15R/25R petri dish rack
Technical Parameters
BK-AJH Pumping Anaerobic Jar (Evacuation takes 3–5 minutes per operation)
| Model | Capacity & Size | Petri Dish Loading Capacity | Dish Rack Spec | Package Size(WDH) | Gross Weight |
|---|
| BK-AJH015 | 1.5L, φ130mm × H150mm | 1 layer of 6 dishes (φ9–10cm) | 15R | 245215295mm | 2.0kg |
| BK-AJH025 | 2.5L, φ130mm × H240mm | 1 layer of 12 dishes (φ9–10cm) | 25R | 245215395mm | 2.5kg |
| BK-AJH035 | 3.5L, φ130mm × H280mm | 1 layer of 18 dishes (φ9cm) | 15/25R | 245215495mm | 3.0kg |
| BK-AJH050 | 5L, φ240mm × H120mm | 3 layers of 6 dishes (φ9cm) | 3/15R | 370370340mm | 5.6kg |
| BK-AJH070 | 7L, φ240mm × H160mm | 3 layers of 8 dishes (φ9cm) | 3/15R | 370370370mm | 6.0kg |
| BK-AJH100 | 10L, φ240mm × H230mm | 3 layers of 12 dishes (φ9cm) | 3/25R | 370370470mm | 7.0kg |
BK-AJG Hermetic Anaerobic Jar (Gas generating type, incubation lasts about 4 hours per batch)
| Model | Petri Dish Loading Capacity | Dish Rack Spec | Package Size(WDH) | Gross Weight |
|---|
| BK-AJG015 | 1 layer of 6 dishes (φ9–10cm) | 15R | 245215295mm | 2.0kg |
| BK-AJG025 | 1 layer of 12 dishes (φ9–10cm) | 25R | 245215395mm | 2.5kg |
| BK-AJG035 | 1 layer of 18 dishes (φ9cm) | 15/25R | 245215495mm | 3.0kg |
| BK-AJG050 | 3 layers of 6 dishes (φ9cm) | 3/15R | 370370340mm | 5.6kg |
| BK-AJG070 | 3 layers of 8 dishes (φ9cm) | 3/15R | 370370370mm | 6.0kg |
| BK-AJG100 | 3 layers of 12 dishes (φ9cm) | 3/25R | 370370470mm | 7.0kg |
