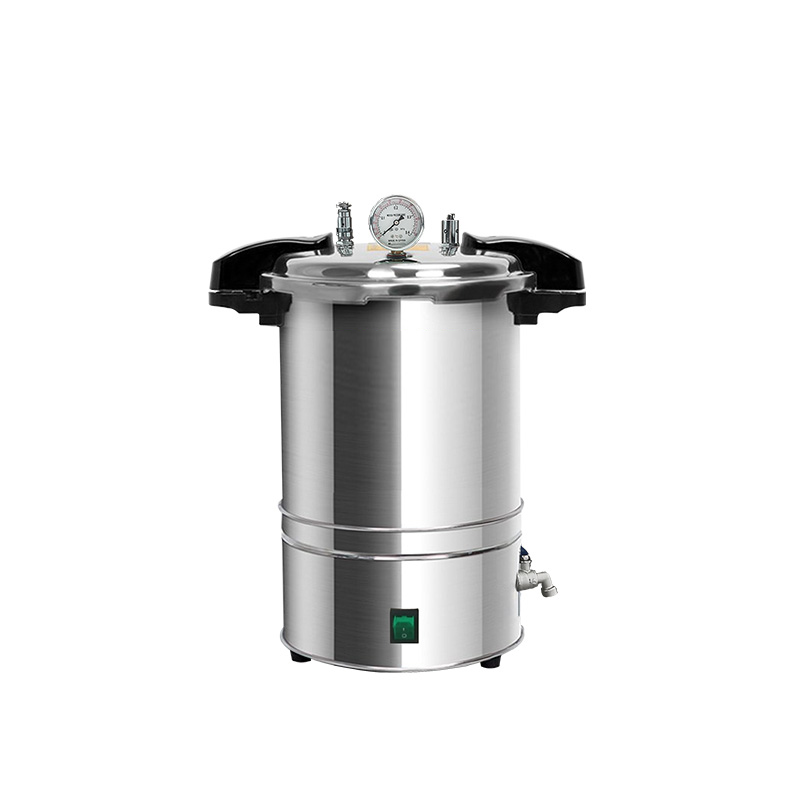

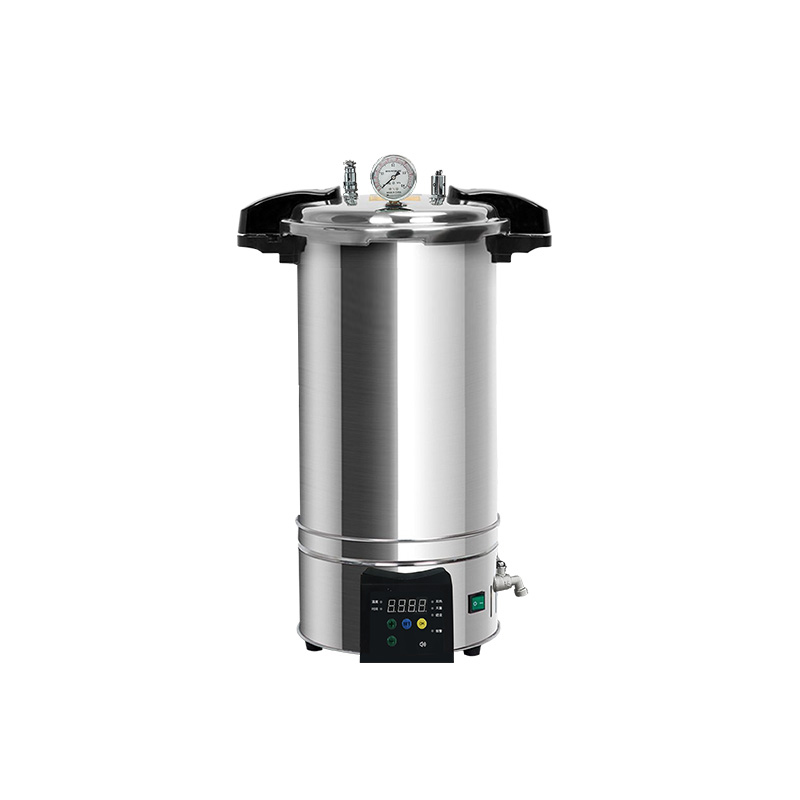

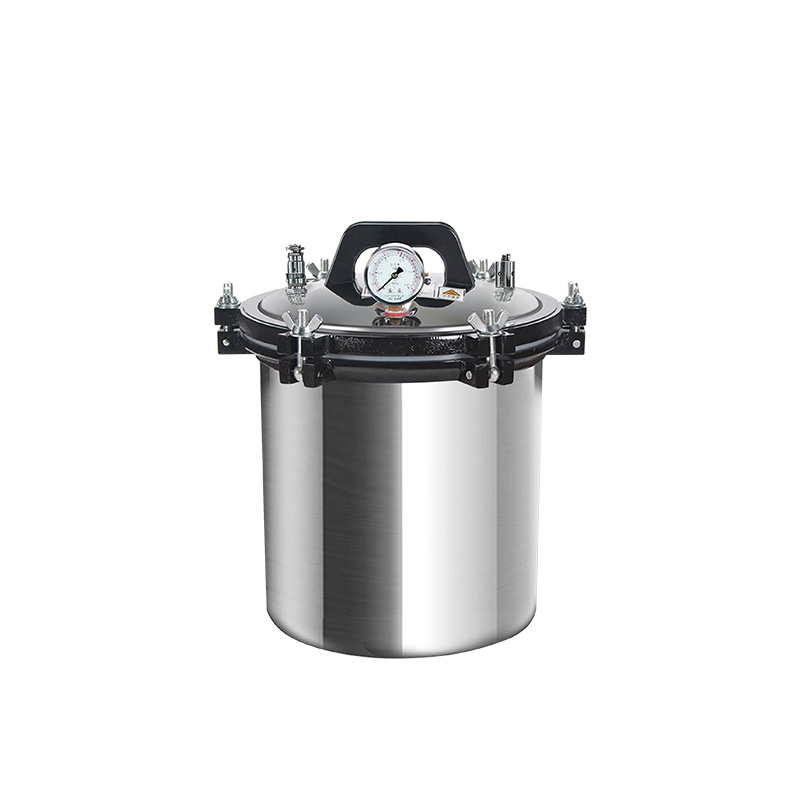

Product Overview
This portable autoclave series includes multiple models with diverse functional configurations to meet different sterilization demands. Widely applicable for high-pressure steam sterilization of surgical tools, dental instruments, laboratory glassware, culture media, biological dressings and daily goods. Featuring flexible heating modes, adjustable parameters and comprehensive safety mechanisms, it is lightweight, easy to carry and suitable for clinics, laboratories and mobile medical scenarios.
Product Features
Self-expanding Sealing RingAdopts high-performance self-expanding sealing structure with excellent tightness, which effectively prevents steam leakage during sterilization and ensures stable internal pressure.
Over-temperature & Over-pressure ProtectionBuilt with automatic protection system against over-temperature and over-pressure, cutting off working status abnormally to avoid equipment failure and safety risks.
High-efficiency Immersion Heating TubeEquipped with stainless steel immersion electric heating tube, featuring high thermal efficiency, fast heating speed and long service life for stable and uniform steam generation.
Water Level Monitoring & Anti-dry BurningComes with visual water level gauge. The equipment automatically stops heating when the water level is too low, effectively protecting the heating tube from dry burning damage.
Dual Heating Mode SupportDual-use design supports both electric heating and liquefied petroleum gas heating, flexible for different working environments with no restriction on power conditions.
Self-adjustable Sterilization ParametersAdjustable temperature and sterilization time with independent self-control function. The device automatically stops heating and triggers alarm reminder once the sterilization process is completed.
Dual Safety Valve DesignEquipped with two safety valves to form double safety guarantee, realizing stable pressure relief and preventing excessive pressure, ensuring overall operation safety.
Technical Parameters
Item | BKM-P18I | BKM-P18II | BKM-P18III | BKM-P24I | BKM-P24II | BKM-P24III |
Type | Dual-use Type | Anti-dry Type | Timing Control Type | Dual-use Type | Anti-dry Type | Timing Control Type |
Capacity | 18L | 18L | 18L | 24L | 24L | 24L |
Max Working Pressure | 0.165MPa | 0.165MPa | 0.165MPa | 0.165MPa | 0.165MPa | 0.165MPa |
Max Working Temperature | 129℃ | 129℃ | 129℃ | 129℃ | 129℃ | 129℃ |
Rated Working Pressure | 0.14MPa | 0.14MPa | 0.14MPa | 0.14MPa | 0.14MPa | 0.14MPa |
Rated Working Temperature | 126℃ | 126℃ | 126℃ | 126℃ | 126℃ | 126℃ |
Temperature Setting Range | Fixed 126℃ | 105~127℃ | Fixed 126℃ | Fixed 126℃ | 105~127℃ | Fixed 126℃ |
Heating Method | Coal / Electricity | Electricity | Coal / Electricity | Coal / Electricity | Electricity | Coal / Electricity |
Sterilizing Time | Manual timing | 0~99min | Manual timing | Manual timing | 0~99min | Manual timing |
Chamber Size | Φ300*320mm | Φ280*350mm | Φ300*320mm | Φ300*450mm | Φ280*460mm | Φ300*450mm |
Applicable Altitude | <2600m | <2600m | <2600m | <2600m | <2600m | <2600m |
Disinfection Tank Size | Φ280*240mm | Φ265*265mm | Φ280*240mm | Φ280*350mm | Φ265*345mm | Φ280*350mm |
Automatic Control | No | Yes | No | No | Yes | No |
Low Water Level Protection Mode | Anti-dry burning heating pipe | Water level switch | Anti-dry burning heating pipe | Anti-dry burning heating pipe | Water level switch | Anti-dry burning heating pipe |
Power Consumption | 2KW, 1.5KW customizable |
|
|
|
|
|
Power Supply | AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional) |
|
|
|
|
|
External Dimension (W*D*H) | 385*385*450mm | 450*340*600mm | 385*385*560mm | 450*340*600mm | 448*340*680mm | 385*385*560mm |
Net Weight | 15.5kg | 13.5kg | 16.5kg | 16.5kg | 14.5kg | 16.5kg |
Package Size (W*D*H) | 400*400*430mm | 400*400*670mm | 400*400*530mm | 400*400*670mm | 400*400*770mm | 400*400*530mm |
Gross Weight | 16.5kg | 14.5kg | 17.5kg | 17.5kg | 15.5kg | 17.5kg |
Supply Information
Product Origin: ChinaDelivery Time: Within 7 daysSupply Capacity: Factory Direct Supply
