Product Overview

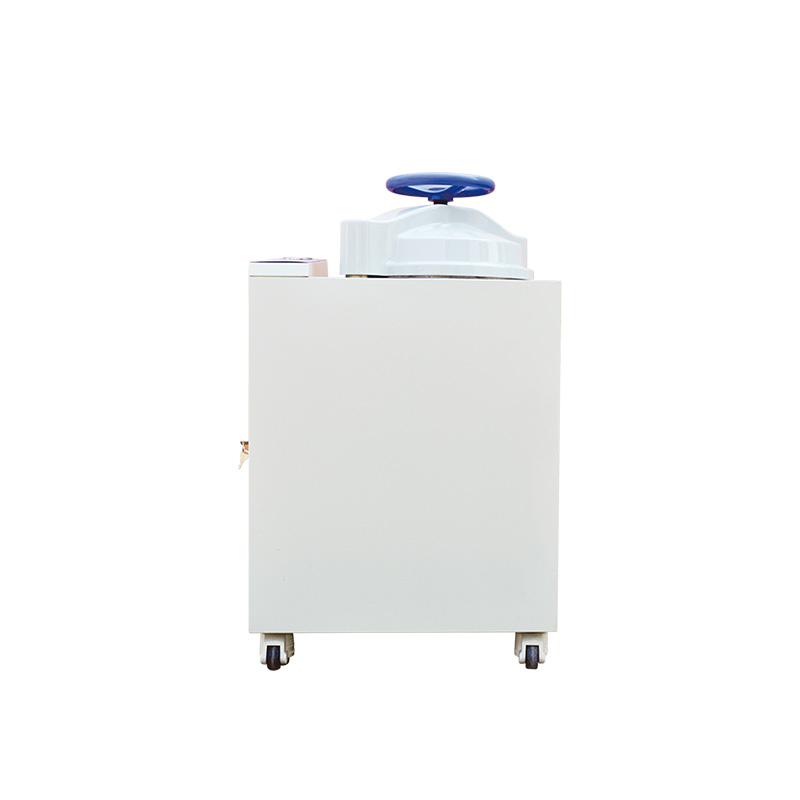

BKQ-B II series vertical autoclaves are high-performance large-capacity steam sterilization equipment, available in 50L to 200L multiple specifications. Designed with professional pulsating exhaust sterilization technology, the equipment thoroughly eliminates cold air inside the chamber to ensure full steam penetration and stable sterilization effect. With humanized mechanical structure, diversified program settings and convenient maintenance design, it meets high-standard and large-batch sterilization demands for hospitals, laboratories and medical institutions.
Product Features
Labor-saving Hand Wheel Sliding DoorAdopts hand wheel sliding opening structure, featuring fast opening and closing, flexible operation and labor-saving use, improving daily working efficiency.
Flexible Mobile CastersEquipped with universal moving casters, supporting free position adjustment of the equipment, convenient for indoor movement and layout arrangement.
Fast Maintenance StructureBuilt with dedicated maintenance window for electrical components. No need to disassemble the whole cover during electrical maintenance, greatly reducing maintenance difficulty and time cost.
Built-in Steam GenerationIntegrated internal heating steam generation design, no external steam source required. Independent steam supply ensures stable and continuous steam output.
High-quality Self-expanding Sealing RingAdopts transparent medical grade silicone integral molding sealing ring. With excellent self-expanding sealing performance, it effectively prevents steam leakage and owns long service life.
High-precision Temperature DetectionReal-time monitoring and display of internal chamber temperature with accurate display precision up to 0.1℃, ensuring accurate and controllable sterilization temperature.
Intuitive LED Digital Display SystemLED digital tube clearly shows real-time temperature, working time and alarm codes. Matching indicator lights intuitively feedback the current equipment operating status.
Pulsating Exhaust Sterilization TechnologyCombines gravity displacement and positive pressure pulsating exhaust method to thoroughly discharge cold air in sterilization room and material gaps, realizing comprehensive and effective sterilization.
Optional Sterilization Data RecordingSupports external printer installation as optional accessory, which can record and archive temperature data during the whole sterilization process for traceable management.
Flexible Inner Water Tank ConfigurationInner water tank is standard equipped for BKQ-B50/75/100/120II models and optional for BKQ-B150/200(II) models, adapting to different usage scenarios.
Rich Dedicated Sterilization ProgramsPre-installed multiple professional programs including exposed instrument program, packaging program, rubber program, dressing program, liquid program, liquid customization and solid customization, covering various medical and laboratory sterilization needs.
Technical Parameters
Item | BKQ-B50II | BKQ-B75II | BKQ-B100II | BKQ-B120II | BKQ-B150(II) | BKQ-B200(II) |
Capacity | 50L | 75L | 100L | 120L | 150L | 200L |
Designed Pressure | 0.28MPa | 0.28MPa | 0.28MPa | 0.28MPa | 0.3MPa | 0.3MPa |
Working Pressure | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa | 0.217MPa | 0.217MPa |
Designed Temperature | 150℃ | 150℃ | 150℃ | 150℃ | 137℃ | 137℃ |
Working Temperature | 105~136℃ | 105~136℃ | 105~136℃ | 105~136℃ | 50~134℃ | 50~134℃ |
Temperature Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
Chamber Material | S30408 | S30408 | S30408 | S30408 | S30408 | S30408 |
Chamber Size | φ386*514mm | φ386*695mm | φ386*875mm | φ386*1055mm | φ500*760mm | φ500*1000mm |
Basket Configuration | φ365*360mm, 1pc | φ365*265mm, 2pcs | φ365*360mm, 2pcs | φ365*360mm, 1pc | φ470*230mm, 3pcs | φ470*230mm, 4pcs |
Noise | ≤65dB | ≤65dB | ≤65dB | ≤65dB | ≤65dB | ≤65dB |
Applicable Altitude | ≤2700m | ≤2700m | ≤2700m | ≤2700m | ≤2700m | ≤2700m |
Standard Accessories | Basket | Basket | Basket | Basket | Basket | Basket |
Optional Accessories | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer | Printer |
Power Consumption | 4.4KW | 4.7KW | 5.2KW | 5.2KW | 6KW | 6KW |
Power Supply | AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional); Wiring method: Air switch | AC380V, 50/60Hz (Standard); AC220V, 50/60Hz (Optional); Wiring method: Air switch |
External Dimension (W*D*H) | 640*550*980mm | 640*550*1080mm | 640*550*1280mm | 640*550*1380mm | 630*700*1400mm | 630*700*1600mm |
Net Weight | 87kg | 95kg | 105kg | 122kg | 162kg | 180kg |
Package Size (W*D*H) | 750*745*1100mm | 750*745*1240mm | 750*745*1450mm | 750*745*1540mm | 760*800*1530mm | 760*800*1720mm |
Gross Weight | 104kg | 114kg | 127kg | 142kg | 213kg | 238kg |
Supply Information
Product Origin: ChinaDelivery Time: Within 7 daysSupply Capacity: Factory Direct Supply
